Lynx Evo

Description

An advanced eyepiece-less stereo microscope for intricate tasks requiring stunning high-resolution 3D stereo viewing. Lynx EVO delivers outstanding optical performance with unrivalled ergonomics to power your productivity.

Highlights

-Stunning eyepiece-less 3D (stereo) imaging.
-Superior ergonomics eliminates fatigue, promoting greater productivity and efficiency.
-10:1 zoom ratio provides 6x – 60x magnification range (240x max) with coarse and fine adjustment, and indexing lever.
-Integrated HD camera and software (option) for simple image/video capture and annotation.
-Long working distance for easy sample manipulation. Large depth of focus for viewing sample details.
-Dynascope® optical technology provides superb hand-to-eye coordination for manipulation tasks.
-Flexible stand options, ideal for industrial and life science applications.

High Productivity Eyepiece-less Stereo Microscope

Lynx EVO is a high productivity stereo microscope without eyepieces, powering your productivity through stunning 3D viewing.

The unique patented eyepiece-less optics of award winning Lynx EVO liberates users from restrictive working practices, opening up a world of enhanced efficiency through unrivalled ease of use and ergonomic performance. It has been honoured with the Microscopy Today Innovation Award 2016.

Providing truly stunning 3D (stereo) imaging, Lynx EVO allows fast and accurate inspection in a wide range of applications.

Dynascope® eyepiece-less technology makes Lynx EVO naturally ergonomic, allowing eyes and hands to work together, simplifying precision inspection tasks.

Removing the need for microscope eyepieces also provides fatigue-free operation, providing health benefits to the operator as well as productivity improvements to the business.

Details

Businesses choose Lynx EVO because they know their operators are more efficient, more accurate and more productive. The operator benefits and so does the business.

The ergonomic advantage

Lynx EVO employs revolutionary Dynascope® technology, improving productivity through unrivalled ergonomics and ease of use.

The eyepiece-less optics of Lynx EVO significantly increase head freedom and eye relief, reducing operator stress and fatigue over long periods of time. Optimal operator ergonomics minimises the risk of repetitive strain-related injuries.

A small movement of the eye no longer means losing part of the field of vision – users can simply move their eyes to view the full image area, rather than the fixed head position required to operate within the constraints of narrow conventional microscope eyepieces.

The patented optics of Lynx EVO provides a large viewing area with an optical, three-dimensional high resolution image, not the two-dimensional digital image of video or camera scopes.

For the operator this means:

-Stunning 3D imaging in complete comfort.
-Fatigue-free viewing with a natural body posture.
-No restriction on head movement or eye wear.

For the business this means:

-Maintain quality of work, even for prolonged periods.
-Improved ease of use, especially for shift workers.
-Increased efficiency and productivity.

Optical excellence
Lynx EVO incorporates Dynascope® patented optical technology that optimises head and body freedom by providing 10mm side-to-side and 70mm front-to-back head freedom.

With a zoom ratio of 10:1 the standard magnification range 6x – 60x can be multiplied with objective and multiplier lenses to a total magnification of 240x. The zoom indexing lever aides in marking a magnification position for samples or multi-user situations.

-Iris control within the zoom unit offers greater control over the depth of field and contrast.
-Coarse and fine adjustment for fast and precision focusing.

HD digital camera for documentation

Integrated HD camera and software (option) provides seamless image/video capture and annotation capabilities for documentation purposes, with simultaneous on-screen display (via PC). Ideal for demonstration or training.

-Easy convenient image/video capture while retaining both optical paths for stereo viewing.
-Convenient USB2.0 interface for easy connectivity.
-Included software provides easy annotation and quick reporting of inspected products.
-Annotations can be loaded as separate files and so can be used for template checking.
-Capture images in compressed JPEG, PNG, or uncompressed BMP format.
-Record video in highly compatible AVI format, ideal for training and demonstration purposes.

Measuring software option

DimensionOne™ is a powerful software solution for Lynx EVO, providing enhanced annotation, as well as on-screen measurement and dimensioning capabilities. DimensionOne™ comes with a CD and calibration artefact for easy on-screen measurement. Other compatible software solutions are also available.

Stand Option

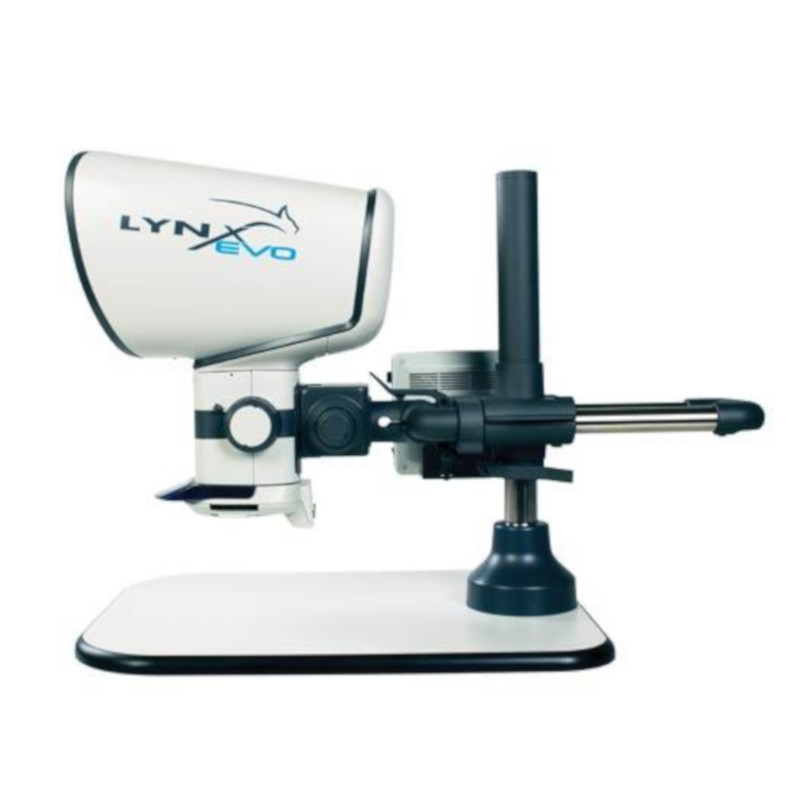

The modular design of Lynx EVO enables the user to select from a wide variety of stand options, illumination and accessories.

HD image capture
Modular construction allows easy addition of accessories, including integrated HD image capture and the amazing 360° rotating viewer.

Innovation and evolution
Lynx EVO is the exciting all new next generation of the hugely successful Lynx stereo microscope.

Ever since Vision Engineering introduced eyepiece-less microscopes, the world’s leading manufacturers have come to rely on our revolutionary stereo microscopes to overcome the daily challenges of increasing quality demands, smaller components, greater efficiencies and accuracies.

Ergo Stand

-Small footprint for restricted bench space.
-Exceptionally stable for high magnification use.
-Transmitted (substage) illumination (option) permits viewing of a wider range of sample types.
-Floating stage (option) provides sensitive control, to allow samples to be accurately inspected, ideal for inspecting fragile samples, or for avoiding contamination by handling.

Multi-axis Stand

-Precise and robust, ideal for industrial applications where maximum work space is desired.
-Extended reach permits the inspection of large samples (max. throat depth 439mm).
-Integrated gas strut provides counter-balanced adjustability, making operation quick and effortless. Switch between tall components (up to 242mm) and flat samples with ease.
-Available with platform base, or mounted directly to the work surface.

Accessories

360° rotating viewer

-The ultimate inspection accessory, permitting a full 360° rotating view of the subject (at an angle of 34°).
-The 360° rotation provides enhanced observation for many applications, including electronics (PCB solder joints, holes, pillars and thread forms), mechanical, medical and plastics components.
-Simply switch between 360° rotating view and a conventional direct view for ultimate convenience.
-Includes integrated 8-point LED ring light and objective lens.

Smart Cam camera and software

-Smart Cam and Smart Cam 5 are integrated HD camera options providing easy and convenient image/video capture while retaining both optical paths (for simultaneous stereo viewing).
-The supplied uEye software includes easy annotation and mark-up capability for quick reporting.
-Smart Cam 5 has a high resolution 5MP digital camera and provides USB3.0 for simple and fast connectivity.
Note: Other compatible software solutions are also available, providing additional functionality including on-screen measurement capabilities.

Measuring / comparison reticle

-Allows the user the ability to measure and compare against a scale, presented to one eye.
-Both simple cross hair, and measurement reticle with scale are available for the Lynx EVO.
-The measurement reticle allows quick, simple dimensioning of the subject as it is being inspected.
-Custom reticles are also available
